Ductile Iron Pipes

Manufacturing Standards

DI Pipes manufactured to Class K7, K9 to ISO 2531: 1998 and EN 545: 2006

DI Pipes manufactured to Class C as per ISO 2531: 2009 and EN 545: 2010

DI Pipes manufactured to PP Class as per EN 598: 2007 + A1: 2009

Product Range

Pipe Diameters: DN 80mm to DN 2600mm

Type of Joints

- Push-fit Tyton (T) type socketed joints

- Mechanical (K) type joints

- Self-restrained (TF) joints

- Flanged Joints

- EPDM gaskets to EN 681-1 / ISO 4633

Internal Lining

Cement Mortar lining with:

  • Ordinary Portland Cement (OPC)
  • Blast Furnace Slag Cement (BFSC)
  • Sulphate Resistant Cement (SRC)
  • High Alumina Cement
  • Ref. Std: ISO 4179 / EN 545
  • Protective Epoxy & Bituminous Seal Coat

Protective External Coating

  • Metallic zinc or zinc-aluminium alloy coating with bitumen or epoxy paint finishing layer
  • Polyurethane coating
  • Reference Std: ISO 8179 / EN 545
  • External PE sleeving to ISO 8180

Product Approvals & Quality Certification

  • Factories with QMS accredited to ISO 9001 / ISO 14001 / OHSAS 18001
  • Products type approved by BSI with Kitemark approvals
  • Products with type approvals and factory approvals from leading independent 3rd party agencies such as Bureau Veritas, TUV, SGS.
  • Drinking Water quality approvals from WRAS (UK) and ACS (CARSO), France.

Photo Gallery

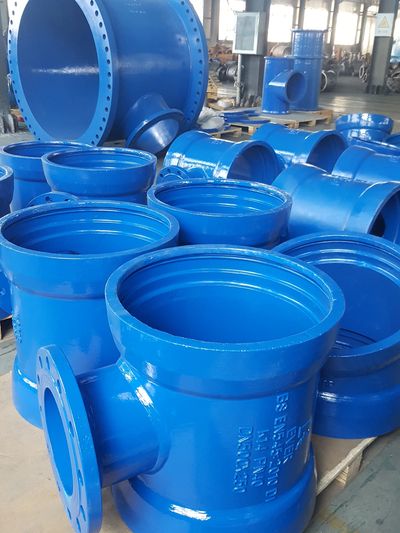

    Ductile Iron Fittings

    Manufacturing Standards

    Ductile Iron Fittings to ISO 2531 / EN 545.

    Product Range

    DN 80mm to DN 2600mm

    Type of Joints

    • Tyton (T) socketed push-fit joints
    • Flanged ends (fixed and mobile flanges)
    • Mechanical (K-type) joints
    • Restrained joints
    • Express Joints

    Pressure Class

    • Tyton Socketed Bends and Reducers Class K12, Tyton Socketed Tees Class K14
    • Flanged joints with flanges drilled to EN 1092-2 PN10/ PN16/ PN25/ PN40

    Internal Lining

    • Cement Mortar lined - OPC / BFSC / SRC / HAC to ISO 4179 / EN 545
    • Blue fusion bonded epoxy (FBE) coating (RAL 5005) to EN 14901 min. DFT 250 microns

    External Protective Coating

    • Zinc rich paint + bitumen/ epoxy paint finishing layer to ISO 8179
    • Blue fusion bonded epoxy (FBE) coating (RAL 5005) to EN 14901 min. DFT 250 microns

    Photo Gallery

      Couplings, Flange Adaptors and Dismantling Joints

      Couplings and Flange Adaptors

      • Dedicated Couplings & Flange Adaptors for DI Pipes to EN 545 for diameters DN 80mm to DN 2200mm
      • Universal Couplings & Flange Adaptors suitable for different pipe materials such as DI, Steel, PVC, AC etc. manufactured to EN 14525, in diameters DN 50mm to DN 600mm
      • Working Pressure: PN10/ PN16/ PN25/ PN40 (flange drilling to EN 1092-2)
      • Internal & External Coating: Blue fusion bonded epoxy (FBE) coating (RAL 5005) to EN 14901 min. 250 microns DFT
      • Suitable for potable water, neutral liquids and sewage
      • Working Temperature: -10 to +70 deg. C
      • Angular deflection 4-6 degrees

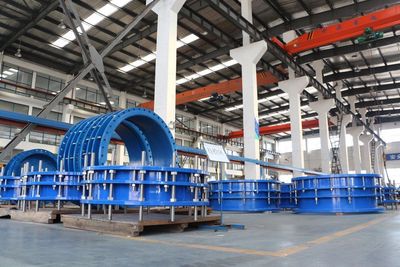

      Dismantling Joints

      • Manufacturing Standard: EN 14525 / EN 545 / AWWA C219
      • Diameter range: DN 50mm to DN 2600mm
      • Working Pressure: PN10/ PN16/ PN25/ PN40
      • Flange drilling to EN 1092-2
      • Internal & External Protection: Blue fusion bonded epoxy (FBE) coating (RAL 5005) to EN 14901 min. 250 microns DFT

      Socketed Fittings for PVC Pipes

      • Manufacturing Standard: EN 12842
      • Suitable for use with UPVC pipes
      • Diameter range: OD 63mm (DN 50mm) - OD 630mm (DN 600mm)
      • Working Pressure: PN10/ PN16
      • Socketed ends supplied with EPDM sealing rings
      • Flanged ends drilled to EN 1092-2 (mobile rotatable flanges available)
      • Internal & External Protection: Blue fusion bonded epoxy (FBE) coating (RAL 5005) to EN 14901 min. 250 microns DFT

      Restrained Joint Fittings for HDPE Pipes

      • Fittings supplied with socketed ends with brass restraint rings for tensile resistance (pullout resistance)
      • Product Range: Couplings and Flange Adaptors, Tees, Bends, Endcaps, Reducers
      • Suitable for HDPE Pipes in diameter range OD 50mm to OD 800mm
      • Working Pressure: PN10/ PN16
      • Internal & External Protection: Blue fusion bonded epoxy (FBE) coating (RAL 5005) to EN 14901 min. 250 microns DFT

      Stainless Steel Repair Clamps and Tees

      • Typically used for repair of damaged pipelines in any materials
      • single band, double band types
      • Diameter range: DN 32mm to DN 500mm
      • Working Pressure: PN10/ PN16
      • Material: SS 316 with EPDM rubber lining and galvanised / dacromet coated steel bolts
      • Clamps with flanged branch outlets available for taking branch connections

      Quality Approvals

      Products manufactured by ISO 9001 accredited factories with 3rd party approvals and WRAS/ ACS approvals for safe use in contact with drinking water

      Photo Gallery
