Fire Fighting Products
Steel Sprinkler Pipes
- Manufacturing Standards: ASTM A53/ ASTM A106/ ASTM A795 Gr. B
- Type of Pipes: Seamless and ERW
- Class: Schedule 40 and Schedule 80
- Diameter range: DN 15mm to DN 200mm (1/2" to 8")
- Surface Finish: Black/ Galvanised/ Red Epoxy painted.
- Pipe Ends: Plain/ grooved.
- Approvals: UL Listed/ FM approved.
Ductile Iron Grooved Fittings
- Manufacturing Standards: Fittings conform to grooved fittings as per AWWA C-606 and ANSI A21.1/ AWWA C-110 for dimensions and wall thickness.
- Material Grade: Ductile Iron conforming to ASTM A536, grade 65-45-12, QT 450-10
- Threaded connections to ASME B1 20.1 / ISO 7-1
- Flanged connections to ANSI B16.1 Class 125, Class 150, Class 300
- Diameter range: DN 25mm to DN 600mm (1" to 24")
- Surface finish: Red paint/ epoxy/ dacromet/ zinc HDG
- Approvals: UL Listed/ FM Approved

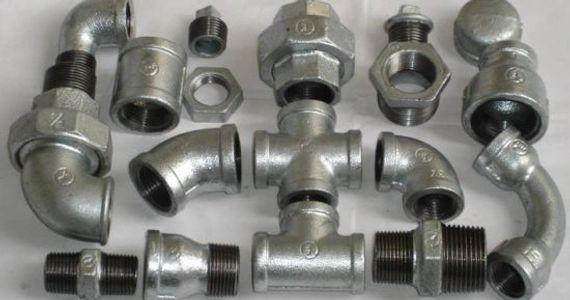

Malleable Iron Fittings
- Manufacturing Standards: BS EN 10242 / ASME B16.3
- Material conforming to ASTM A197/ BS EN 1562
- End connections threaded to ASME B1.20.1 / ISO 7-1
- Fittings Class: Class 150, Class 300
- Diameter range: 6mm to 200mm (1/8" to 8")
- Surface finish: Black/ zinc HDG
- Approvals: UL Listed/ FM Approved.
Valves
- Material: Ductile Iron to ASTM A536 grade 65-45-12
- End Connections: Flanged ends to ASME B16.1 or grooved ends AWWA C-606
- Diameter range: DN 50mm to DN 300mm (2" to 12")
- Additional: Butterfly Valves DN 25mm to 50mm with female threaded ends
- Pressure Class: Class 125 (std.)/ Class 200 & Class 300 on request
- Coating: All valves FBE coated min. 250 microns
- Product Approvals: UL Listed/ FM Approved
- Gate Valves: Resilient seated NRS and OS&Y type
- Butterfly Valves: Resilient seated, with tamper switch
- Check Valves: Resilient seated
- Strainers: Y-type Strainer, with AISI 304 / AISI 316 screen filter
- Wet Alarm Check Valves: standard working pressure 300 psi; diameter range DN 80mm to DN 200mm
- Others: Pressure Reducing/ Deluge Valves/ Test & Drain Valves
Hoses, Hose Reels, Cabinets, Landing Valves, Breeching Inlets & Fire Hydrants
- CE approved Hose Reels to EN 694 available in diameters 20mm (3/4") and 25mm (1"), in 20m/30m lengths
- Swing automatic/ manual & Fixed automatic/ manual types
- Supplied with or without steel hose reel cabinets, complete with landing valves and nozzles
- CE approved/ BSI kite marked Brass/ gunmetal landing valves, straight or oblique type, DN 50mm and 65mm, complete with couplings
- BSI kite marked Flanged 2-way (DN 100mm) & 4-way (DN 150mm) Breeching Inlets
- UL Listed Canvas Fire Hoses, complete with nozzles & hose rack, DN40mm, 50mm & 65mm, working pressure 13 bar & 17 bar
- Cast Iron 2-way & 3-way Pillar Fire Hydrant, with valve & duck foot bend, flanged inlet DN 100mm or DN 150mm, threaded outlet DN 65mm, complete with couplings
Sprinkler Heads and Flexible Drop Hoses
- Types: Pendent/ Upright/ Horizontal Sidewall/ Concealed
- Standard Response and Quick Response types
- Temp. Ratings: Red Bulb - 68 deg. C (155 deg. F) / Yellow Bulb - 79 deg. C (175 deg. F) / Green Bulb - 93 deg. C (200 deg. F)
- Max. Working Pressure: 175 psi (1.2 MPa)
- K-Factor: 5.6 (US) / 80 (metric)
- Chrome, White or Brass Finish
- UL / ULC Listed.
- Flexible drop hoses, in 1/2" and 3/4" NPT threads
- Pressure Rating: PN16
- Lengths: from 600mm to 1800mm
- UL Listed/ FM Approved
Fire Extinguishers
- Dry Powder: Filling weight 1kg to 12 kg, temperature range -30 to +60 deg. C/ max. operating pressure 18 bar
- Foam: Filling weight 2L-9L; temperature range 0 deg to 60 deg. C/ max. operating pressure 18 bar
- Water: Filling weight 6L & 9L; temperature range 0 deg to 60 deg. C/ max. operating pressure 18 bar
- CO2 type (Carbon Steel): Filling weight 2kg to 7kg; temperature range -20 deg to 60 deg. C/ max. operating pressure 174 bar
- CO2 type (Alloy Steel): Filling weight 2kg & 5kg; temperature range -30 deg to 60 deg. C/ max. operating pressure 216 bar
- Trolley type with wheels for 25kg and 50kg filling weights, max. operating pressure 15 bar
- CE approved/ BSI Kitemark approved to BS-EN3
Fire Booster Pumps
- Complete Fire Booster Pump-sets - Electric + Diesel + Jockey (E+D+J)
- Main Pumps: End-suction or Split-case type
- End-Suction Pumps: Rated capacity of 200-2000 GPM @ working pressure between 217-321 psi
- Split-Case Pumps: Rated capacity of 500-3000 GPM @ working pressure between 232-290 psi
- Manufacturer ISO 9001/ ISO 14001/ OHSAS 18001 accredited
- UL Listed/ FM Approved
- CE Approved / EN 12845 approved
