Water Meters & Electromagnetic Flow Meters

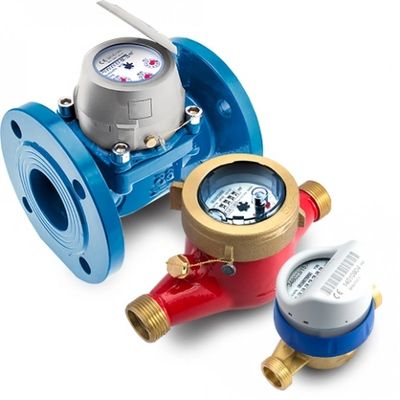

Domestic Meters

• Manufacturing Standard: EN 14154 / ISO 4064
• Type: Velocity Multi-jet or Single type/ Volumetric Rotary Piston type
• Type of Dial: Wet (liquid filled) dial/ Dry dial/ Super-dry dial
• Housing: Brass/ Cast Iron/ Plastic body
• Accuracy (R= Q3/Q1): R160 (Class C) or R80 (Class B)
• Sizes: DN 15mm (1/2") to DN 50mm (2")
• Pressure rating: PN10/ PN16
• Accessories: complete with end connections, strainer and non-return valve
• Suitable for horizontal as well as vertical installations
• remote reading access feature available
• plastic body water meter box available

Bulk Water Meters

• Manufacturing Standard: EN 14154/ ISO 4064
• Type: Woltmann type Bulk Water Meter for water supply and irrigation
• Removable element type
• Housing & Connections: Ductile iron body, with flanged ends drilled to EN 1092-2 PN10/ PN16
• Diameter range: DN 40mm to DN 500mm
• Accuracy (R= Q3/Q1): R80 (Class B)
• Suitable for horizontal and vertical installations
• remote reading access feature available

Water Meter Quality Approvals

• Manufacturer is ISO 9001/ ISO 14001/ OHSAS 18001 accredited.
• Products full approved by EC / MID/ OIML
• Fully approved by WRAS (UK) for safe use in contact with drinking water

Electromagnetic Flow Meters

• Flow measurement by the principles of Faraday's electromagnetic induction law
• Cast Steel Body, with PTFE/ Synthetic Rubber Liner
• Electrode Material: SS/ Hastelloy/ Titanium/ Carbonized Tungsten
• Structure: Integral type
• Temperature: -20 to +50 deg. C
• Degree of Protection: IP68
• Nominal Pressure: 6-32 bar
• Diameter range: 15mm-2400mm
• Fluid Temperature: less than or equal to 80 deg. C
• Power Supply: DC24V or 100-240VAC
• Signal Output: 4-20mA, standard pulse output
• Communication: RS485 computer interface and HART protocol

Electromagnetic Flow Meter Quality Approvals

• Manufacturer is ISO 9001/ ISO 14001/ OHSAS 18001 accredited.
• Products full approved by CE / NEPSI (explosion proof)
